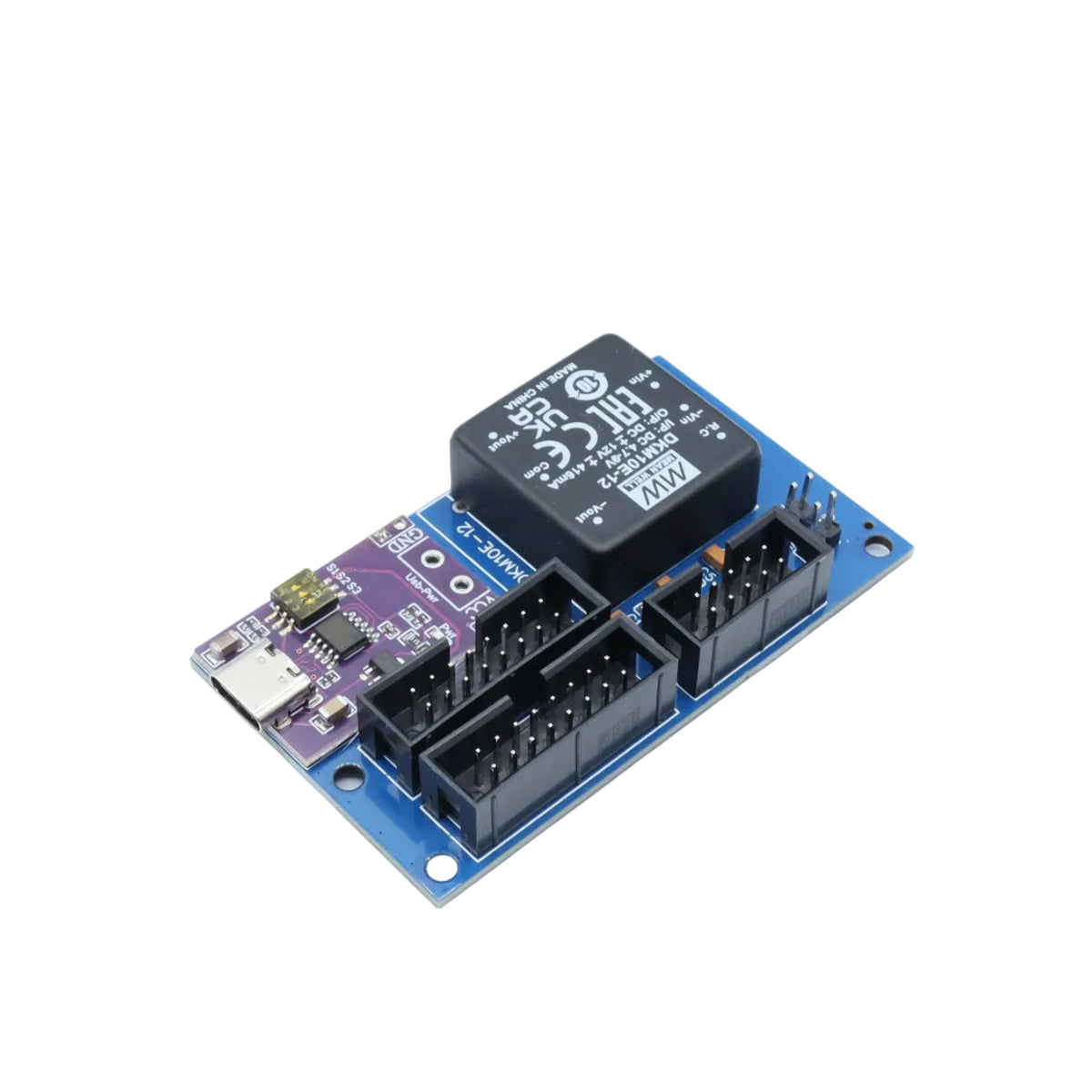

Compact Eurorack Power Supply USB-C Powered - 10 Watts

Building a portable box or a compact Eurorack rig? Introducing the Compact 415mA ±12V Eurorack Power Supply, your new little powerhouse.

Through a handy USB-C connection, this small powerhouse supplies clean, reliable energy for any modular setup. No bother, no bulky adapters.

Features:

• Compact and efficient: 415mA ±12V output — Ideal for streamlined installations or small Eurorack enclosures. Make sure to first check the power consumption of your modules on ModularGrid!

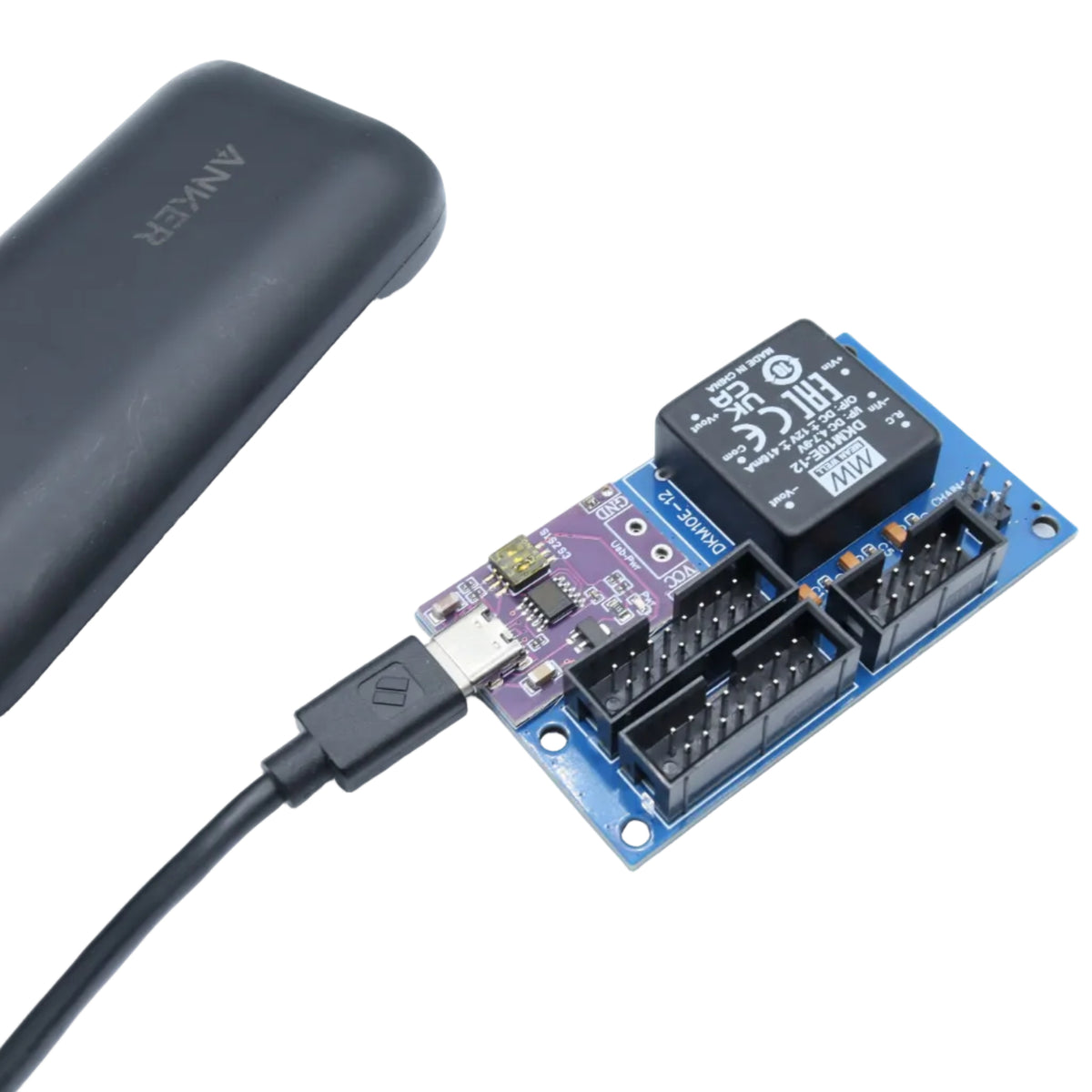

• USB-C input: Power your rack from any USB-C source — laptop charger, wall adapter, or even a power bank.
• 3 Bus Connectors: Ready to feed your favorite modules.
• Chainable design: Adding a few new modules? To easily expand without changing your casing, just add a second unit.

Why You’ll Love It

• Perfect for small cases and travel setups where every mm counts, like 40hp to 60hp cases. 14mm module height.
• Expandable: One power module at a time, start small and expand your system.
• Sleek and space-saving: Leaves room (and power) for the modules that really matter.

Options:

• Fully Assembled only


Specifications:

• Output: ±12V / 415mA maximum, +5V / 1A or more depending on your USB power adapter.
• Input: USB-C (5V)
• Size: 71mm x 42mm x 14mm
• Outputs: Two 16 pins bus connectors, One 10 pins bus connector
• Chainable: Up to 2 units for more power or additional rows
• Overload protection: Recovers automatically after fault condition is removed. Avoid capacitor over 100uF on 12v rails, to prevent power supply instabilities
